Product Description

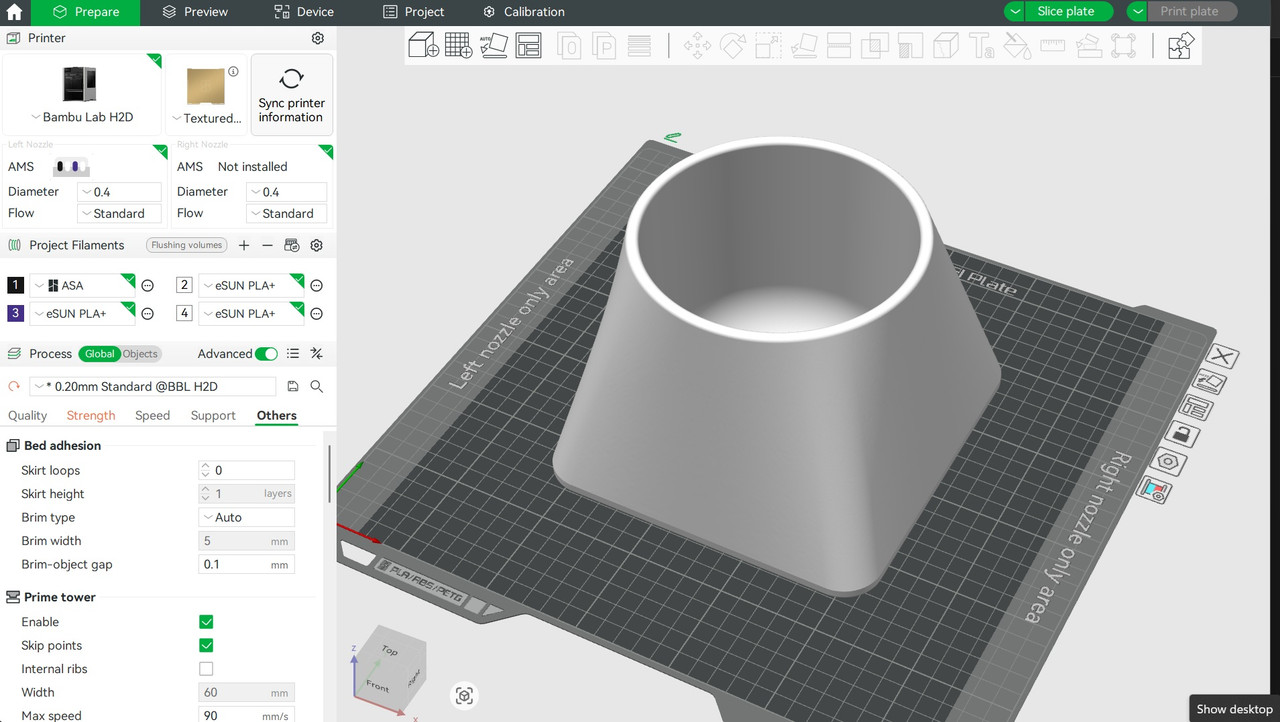

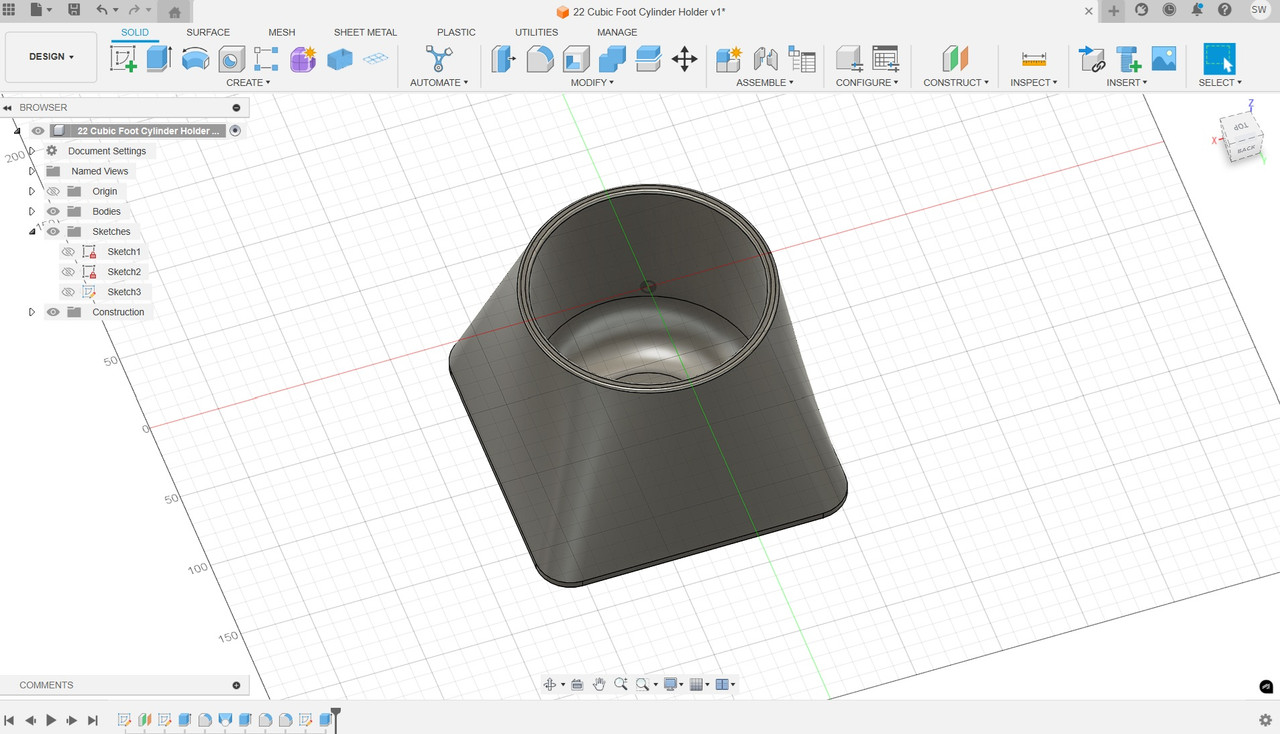

Oxygen Cylinder Vertical Support Tool
Part Number: NSL-OXYCYL1
For the Luxfer 22 cubic feet Composite Cylinder (Fitted to Avox P/N 808158-01)
The Oxygen Cylinder Support Tool is a precision-engineered fixture designed to securely orient a Luxfer 22 cubic foot composite oxygen cylinder in the vertical position during maintenance or servicing of the Avox Portable Cylinder Assembly, part number 808158-01.
This tool is essential for ensuring stability and technician safety while performing tasks such as valve inspection, O-ring replacement, pressure testing, or regulator servicing. By maintaining the cylinder in an upright orientation, the tool minimizes movement and the risk of damage to critical components during handling.
Key Specifications:
- Compatibility: Specifically designed for Luxfer 22 cu ft composite cylinders used in Avox P/N 808158-01 assemblies
- Material: 3D printed using high-strength PLA+ filament
- Environmental Impact: Made from 100% biodegradable PLA+, combining long-term usability with environmental sustainability
- Stability: Precision-fit design ensures a snug hold, preventing tipping or rolling during maintenance
- Durability: PLA+ material offers excellent dimensional stability, impact resistance, and strength suitable for repeated use in maintenance environments
Use Case:
Ideal for aviation maintenance technicians performing routine or detailed service on Avox portable oxygen assemblies, this support tool simplifies handling and increases workspace safety by holding the cylinder vertically and securely in place.
Specifications:
| Parameter | Value |
|---|---|
| Cylinder Compatibility | Luxfer 22 cu ft Composite Cylinder |
| Assembly Compatibility | Avox Portable Cylinder Assembly P/N 808158-01 |
| Orientation Function | Vertical alignment support during maintenance |
| Material | PLA+ (Polylactic Acid Plus) |
| Material Properties | High-strength, biodegradable thermoplastic |
| Environmental Impact | 100% biodegradable, non-toxic |
| Service Life | Designed for multi-year usage under normal maintenance conditions |
| Weight | 450 grams |
| Dimensions | 180L x 108W x 140H in mm |
| Color | White |
| Manufacturing Process | FDM 3D Printing (Fused Deposition Modeling) |
Key Features:
-
Ensures safe vertical positioning of oxygen cylinders during maintenance
-
Custom fit for Luxfer 22 cu ft composite cylinder base
-
Manufactured from durable, biodegradable PLA+, suitable for repeated professional use
-
Lightweight and portable—ideal for hangar tool kits and field service operations
-
Corrosion-free, non-conductive material safe for use around sensitive components
Applications:
-
Aviation oxygen system maintenance
-
Valve and regulator inspection or replacement
-
Leak checks and pressure servicing
-
General support during oxygen bottle handling and assembly
