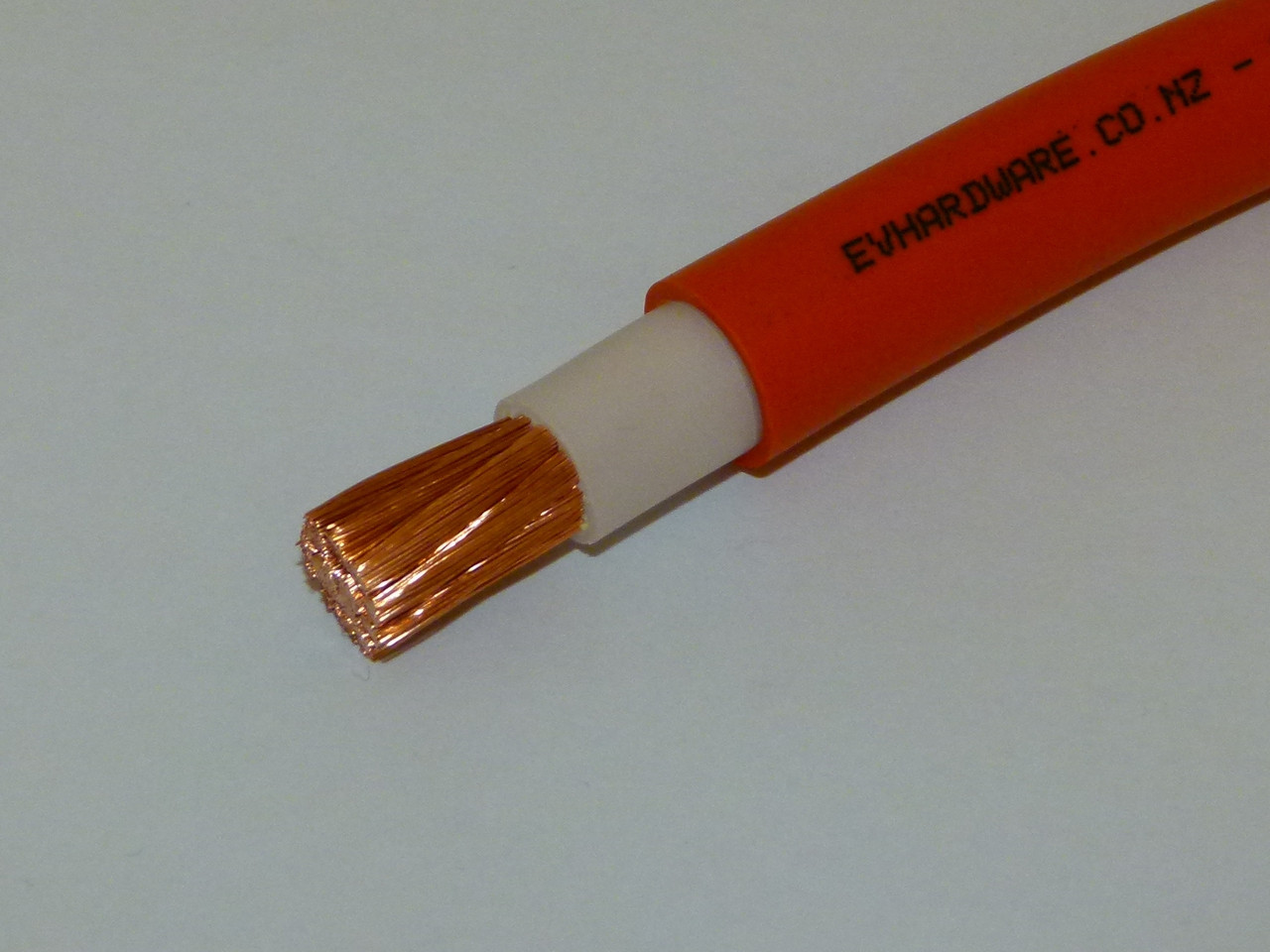

70mm² Flexible Cable

Hover over image to zoom

  • Image 1
$29.50
Shipping:
Calculated at checkout

 Product Description

70mm² Flexible Cable

Basic Cable Specifications:

- Continuous current rating: 292 amps (Unenclosed Touching, 30°C Ambient in Air)
- Short circuit rating 9240 amps for 1 second when operating at rated temp. of 110°C
- Nominal Conductor Diameter: 10.8 mm
- Nominal Cable Diameter: 16.2 mm

Construction:

- Conductor: Fine stranded annealed copper to IEC 60228 and AS/NZS 1125.
- Insulation: LSFLEX® R-70 (X-HF-110), Cross-linked, Thermoset, Elastomeric.
- Jacket: Low-Friction E-Rubber® S-20 Thermoplastic, Elastomeric, Flame Retardant. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists Ozone and UV. Excellent abrasion resistance. Submersible to 500m. Best practice PVC.

Detailed Specifications:

- Operating Temp: -40°C to +110°C.
- Voltage rating: 600/1000 Volts.
- Sheath Colour: Orange.
- Standards: AS/NZS 1125, AS/NZS1660.5.1, AS/NZS1660.5.6, AS/NZS 3008.1, AS/NZ3808, AS/NZS 5000.1 & IEC 60228, IEC 60332-1, IEC 60332-3-2.

Notes:

Quantity = Price is per metre.
