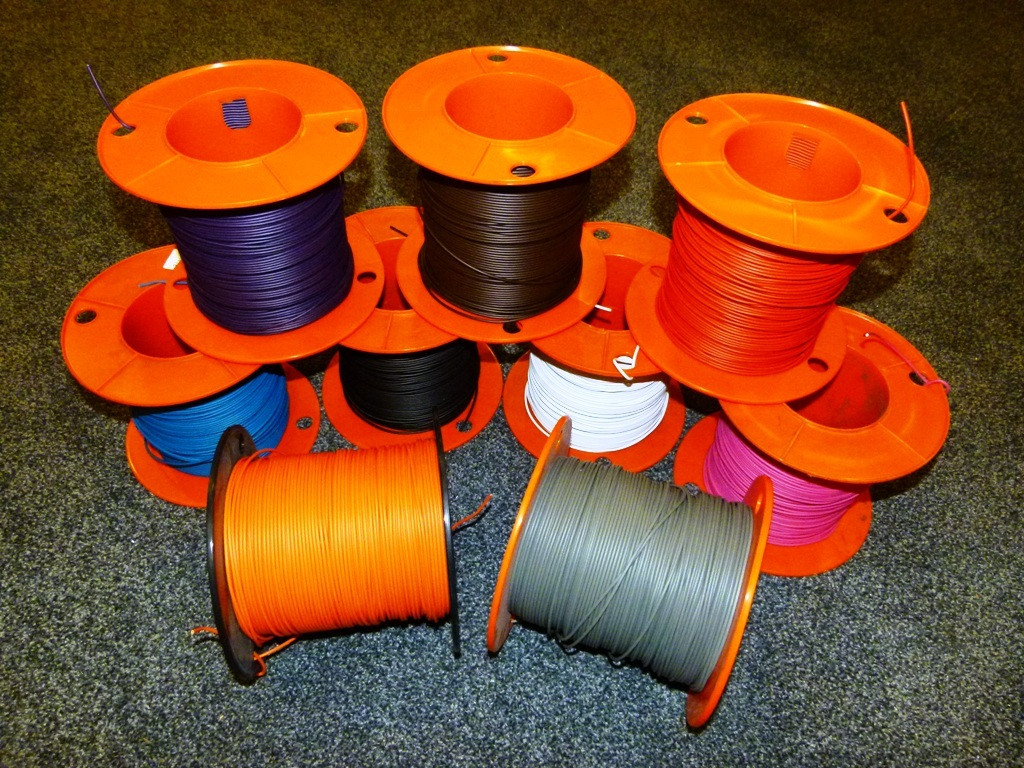

2.5mm² Flexible Cable

Hover over image to zoom

  • Image 1
$399.99
Shipping:
Calculated at checkout

 Product Description

2.5mm² Flexible Cable - 200 Metre Roll

Basic Cable Specifications:

- Continuous current rating: 36 amps (Unenclosed Touching, 30°C Ambient in Air)
- Short circuit rating 330 amps for 1 second when operating at a temp. of 110°C
- Nominal Conductor Diameter: 2.1 mm
- Nominal Cable Diameter: 2.9 mm

Construction:

- Conductor: Fine tinned stranded annealed copper to IEC 60228 and AS/NZS 1125.
- Insulation: LSFLEX® R-125 (X-HF-110), Flame Retardant, Cross-linked, Thermoset, Elastomeric, Low Smoke Zero Halogen. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists Ozone and UV. Excellent abrasion resistance. Submersible to 500m. Best practice PVC.

Detailed Specifications:

- Operating Temp: -40°C to +125°C.
- Voltage rating: 600/1000 Volts.
- Available Colours: White, Red, Black, Blue, Orange, Grey, Brown, Purple, Pink, Green/Yellow.
- Standards: AS/NZS 1125, AS/NZS1660.5.1, AS/NZS1660.5.2, AS/NZS1660.5.4, AS/NZS1660.5.6, AS/NZS 3008.1, AS/NZ3808, AS/NZS 5000.1 & IEC 60228, IEC 60332-1, IEC 60332-3-22, IEC 60754-2, IEC 61034-1&2.
- Greenstar Compliant.

Notes:

Quantity = Price is per 200 metre roll.
